QMPX18J307SEM QM

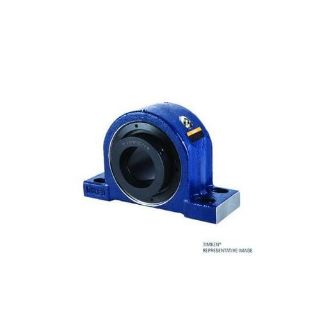

Picture of QMPX18J307SEM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QMPX18J307SEM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,123.91 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QMPX18J307SEM, Pillow Block, Series: QMPX, 3.4375 in Bore, 10.81 to 12.19 in Bolt Center-to-Center Length, 4 in Base to Bore Centerline, 15 in Overall Length, 4.96 in Overall Width, 7.92 in Overall Height, 4-Bolt Mounting, Cylindrical Bore, 4.75 in Base Width, Eccentric Lock Locking Device, M Seal, Expansion, 79700 lb Dynamic/87200 lb Static Load, -50 to 200 deg F, 1400 rpm Grease/1400 rpm Oil Maximum, Steel, Painted

Application

Offers superior sealing in moist and dirty applications

Features

  • A reduced eccentric offset results in more mechanical advantage
  • This series provides a secure lock that should not release from a properly prepared shaft even in reversing applications
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Base to Bore Centerline:4 in
Base Width:4.75 in
Bolt Center-to-Center Length:10.81 to 12.19 in
Bore Diameter:3.4375 in
Bore Type:Cylindrical
Expansion Type:Expansion
Finish:Painted
Load Capacity:79700 lb Dynamic/87200 lb Static
Locking Device:Eccentric Lock
Material:Steel
Maximum Speed:1400 rpm Grease/1400 rpm Oil
Mounting Type:4-Bolt
Overall Height:7.92 in
Overall Length:15 in
Overall Width:4.96 in
Seal Type:M Seal
Series:QMPX
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Locking Type
Eccentric Lock
Measuring Units
Inch
Shaft Diameter
3 7/16 in
Type
4 Bolt Pillow Block
