QVC11V050SB QM

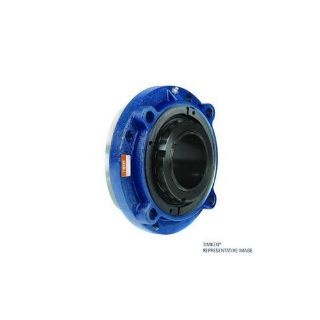

Picture of QVC11V050SB QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVC11V050SB
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,119.29 / EA

Description

Brand Name

Timken®

Type

Single V-Lock

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVC11V050SB, Piloted Flange Cartridge, Single V-Lock, Series: QVC, 1.9685 in Bore, 3.8 in Bolt Center-to-Center Length, 5.38 in Diameter Bolt Circle, Piloted Flange Mounting, 6.38| in Overall Length/Diameter, 3.18 in Overall Depth, Single V-Lock® Locking Device, Steel Bearing, Nitrile Rubber Seal, 140000 N Dynamic/142000 N Static Load, 1800 rpm Grease/1800 rpm Oil Maximum, -50 to 200 deg F, Painted

Application

Designed for extreme moisture, fine dust or extremely dirty applications

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Double-lip seal with garter spring for maximum contact and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself
  • Made from nitrile rubber and designed for extreme moisture, fine dust or extremely dirty applications

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:3.8 in
Bolt Circle Diameter:5.38 in
Bore Diameter:1.9685 in
Finish:Painted
Flange Mounting Type:Piloted
Load Capacity:140000 N Dynamic/142000 N Static
Locking Device:Single V-Lock®
Maximum Speed:1800 rpm Grease/1800 rpm Oil
Overall Depth:3.18 in
Overall Length/Diameter:6.38 in
Seal Material:Nitrile Rubber
Series:QVC
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Flange Type
Piloted Flange
Measuring Units
Metric
Shaft Diameter
50 mm
