QVC14V065SEM QM

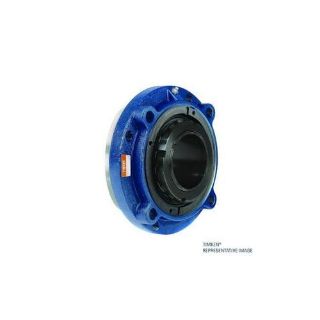

Picture of QVC14V065SEM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVC14V065SEM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,397.89 / EA

Description

Brand Name

Timken®

Type

Single V-Lock

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVC14V065SEM, Piloted Flange Cartridge, Single V-Lock, Series: QVC, 2.5591 in Bore, 4.6 in Bolt Center-to-Center Length, 6.5 in Diameter Bolt Circle, Piloted Flange Mounting, 7.63| in Overall Length/Diameter, 3.33 in Overall Depth, Single V-Lock® Locking Device, Steel Bearing, Nitrile Rubber Seal, 213000 N Dynamic/231000 N Static Load, 1700 rpm Grease/1700 rpm Oil Maximum, -50 to 200 deg F, Painted

Application

Offers superior sealing in moist and dirty applications

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:4.6 in
Bolt Circle Diameter:6.5 in
Bore Diameter:2.5591 in
Finish:Painted
Flange Mounting Type:Piloted
Load Capacity:213000 N Dynamic/231000 N Static
Locking Device:Single V-Lock®
Maximum Speed:1700 rpm Grease/1700 rpm Oil
Overall Depth:3.33 in
Overall Length/Diameter:7.63 in
Seal Material:Nitrile Rubber
Series:QVC
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Metric
Shaft Diameter
65 mm
