QVC16V070SEM QM

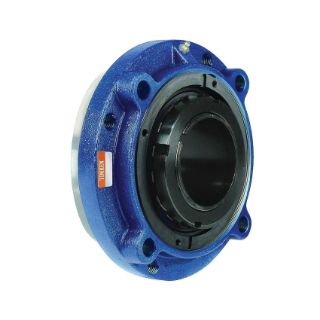

Picture of QVC16V070SEM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVC16V070SEM
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,119.94 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Expansion M Seal Solid Block

Description

The V-Lock® locking mechanism evenly distributes force on the shaft, helping eliminate fretting corrosion. V-Lock® provides maximum holding power and prevents over tightening.
Timken®, QVC16V070SEM, Spherical Roller Bearing Housed Unit, Expansion M Seal Solid Block, 70 mm Bore, 5.3 in Bolt Center-to-Center Length, 7-1/2 in Diameter Bolt Circle, 4-Bolt Piloted Flange Mounting, 8-3/4 in Overall Length/Diameter, 3.33 in Overall Depth, 8-3/4 in Overall Height, Single V-Lock® Locking Device, Cast Steel Seal, 57200 lb Dynamic/62500 lb Static Load, 1500 rpm Grease/Oil Maximum

Application

For use with 70 mm shaft diameter

Features

  • Reliable mechanical withdrawal
  • Preset spherical inner-ring radial internal clearances
  • Highest shaft-holding power
  • Works well in high-speed applications where shaft centering is an issue

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:5.3 in
Bolt Circle Diameter:7-1/2 in
Bore Diameter:70 mm
Flange Mounting Type:4-Bolt Piloted
Load Capacity:57200 lb Dynamic/62500 lb Static
Locking Device:Single V-Lock®
Maximum Speed:1500 rpm Grease/Oil
Overall Depth:3.33 in
Overall Height:8-3/4 in
Overall Length/Diameter:8-3/4 in
Seal Material:Cast Steel

Products Specifications

Brand Name
Timken
Measuring Units
Metric
Shaft Diameter
70 mm
