QVC16V215SO QM

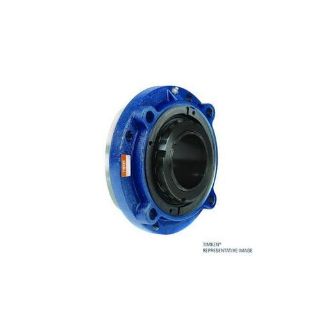

Picture of QVC16V215SO QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVC16V215SO
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,225.90 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Straight

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVC16V215SO, Piloted Flange Cartridge, Straight, Series: QVC, 2.9375 in Bore, 5.3 in Bolt Center-to-Center Length, 7.5 in Diameter Bolt Circle, Piloted Flange Mounting, 8.75 in Overall Length/Diameter, 3.33 in Overall Depth, 3.33 in Overall Height, Single V-Lock® Locking Device, Steel Bearing, Polyurethane Seal, 254000 N Dynamic/278000 N Static Load, 1150 rpm Grease/1200 rpm Oil Maximum, -40 to 260 deg F, Painted

Application

Works well in high-speed applications where shaft centering is an issue

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Medium Duty contact triple-lip seal made of high-strength urethane for superior abrasion resistance

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:5.3 in
Bolt Circle Diameter:7.5 in
Bore Diameter:2.9375 in
Finish:Painted
Flange Mounting Type:Piloted
Load Capacity:254000 N Dynamic/278000 N Static
Locking Device:Single V-Lock®
Maximum Speed:1150 rpm Grease/1200 rpm Oil
Overall Depth:3.33 in
Overall Height:3.33 in
Overall Length/Diameter:8.75 in
Seal Material:Polyurethane
Series:QVC
Temperature Rating:-40 to 260 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
2 15/16 in
