QVC22V100SB QM

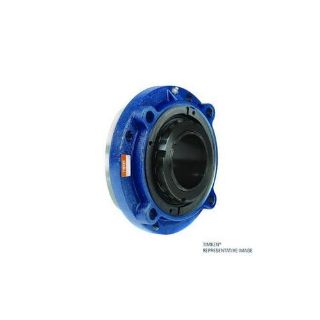

Picture of QVC22V100SB QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVC22V100SB
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$4,565.88 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Straight

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVC22V100SB, Piloted Flange Cartridge, Straight, Series: QVC, 3.937 in Bore, 6.63 in Bolt Center-to-Center Length, 9.38 in Diameter Bolt Circle, Piloted Flange Mounting, 10.88 in Overall Length/Diameter, 4.54 in Overall Depth, 4.54 in Overall Height, Single V-Lock® Locking Device, Steel Bearing, Nitrile Rubber Seal, 555000 N Dynamic/653000 N Static Load, 600 rpm Grease/600 rpm Oil Maximum, -50 to 200 deg F, Painted

Application

Designed for extreme moisture, fine dust or extremely dirty applications

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Double-lip seal with garter spring for maximum contact and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself
  • Made from nitrile rubber and designed for extreme moisture, fine dust or extremely dirty applications

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:6.63 in
Bolt Circle Diameter:9.38 in
Bore Diameter:3.937 in
Finish:Painted
Flange Mounting Type:Piloted
Load Capacity:555000 N Dynamic/653000 N Static
Locking Device:Single V-Lock®
Maximum Speed:600 rpm Grease/600 rpm Oil
Overall Depth:4.54 in
Overall Height:4.54 in
Overall Length/Diameter:10.88 in
Seal Material:Nitrile Rubber
Series:QVC
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Metric
Shaft Diameter
100 mm
