QVC26V408SM QM

Name: QVC26V408SM QM
Brand: Timken
SKU: QVC26V408SM QM
Price: 7,410.56 USD
Availability: OutOfStock

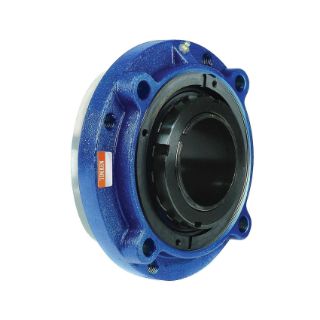

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

QVC26V408SM

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$7,410.56 / EA

Description

Brand Name

Timken®

Type

Heavy Duty Non-Expansion Tapered Bore

Description

Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.

Timken®, QVC26V408SM, Spherical Roller Bearing Unit, Heavy Duty Non-Expansion Tapered Bore, 4-1/2 in Bore, 5.88 in Bolt Center-to-Center Length, 11-3/4 in Diameter Bolt Circle, 6-Bolt Piloted Flange Mounting, 13-1/2 in Overall Length/Diameter, 5.3 in Overall Depth, Single V-Lock® Locking Device, Steel Bearing, Nitrile Rubber Seal, 170000 lb Dynamic/212000 lb Static Load, 700 rpm Maximum, -40 to 250 deg F, Powder Coated

Application

Aggregate, Cement, Metal Mills, Mining, Power Generation, Pulp, Paper, Material Conveying, Commercial, Industrial Building Equipment, Sugar Mills, Agriculture, Waste Management, Water Treatment, HVAC, Fans, Blowers, Cranes, Lifts, Hoists, Off-Highway and Construction Vehicles Industries

Standards

ANSI/ABMA Standard | ATEX 94/9/EC | CE 93/68/EEC | REACH EC 1907/2006/RoHS 2011/65

Features

Patented V-Lock® mechanism evenly distributes force on the shaft, helping eliminate fretting corrosion
Maximum holding power and prevention of overtightening
Reliable mechanical withdraw
Preset spherical inner ring radial internal clearances
Quick installation
Works well with high-speed applications where shaft centering is an issue
Triple-lip contacting, self-purging nitrile rubber seal is excellent in moist and dirty applications, chemical and corrosion resistant
Double row bearing
Cast steel housing
Open end type
Solid block housing
Do not operate at bearing temperatures above 250 deg F

Specifications

Bearing Material:	Steel
Bolt Center-to-Center Length:	5.88 in
Bolt Circle Diameter:	11-3/4 in
Bore Diameter:	4-1/2 in
Finish:	Powder Coated
Flange Mounting Type:	6-Bolt Piloted
Load Capacity:	170000 lb Dynamic/212000 lb Static
Locking Device:	Single V-Lock®
Maximum Speed:	700 rpm
Overall Depth:	5.3 in
Overall Length/Diameter:	13-1/2 in
Seal Material:	Nitrile Rubber
Temperature Rating:	-40 to 250 deg F
