QVCW12V203SEM QM

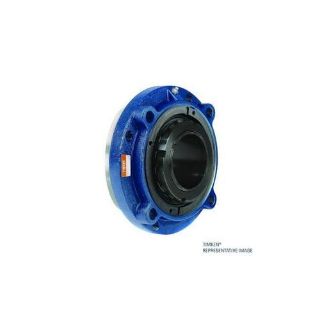

Picture of QVCW12V203SEM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVCW12V203SEM
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,307.68 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Straight

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVCW12V203SEM, Piloted Flange Cartridge, Straight, Series: QVCW, 2.1875 in Bore, 4.24 in Bolt Center-to-Center Length, 6 in Diameter Bolt Circle, Piloted Flange Mounting, 7.13 in Overall Length/Diameter, 3.33 in Overall Depth, 3.33 in Overall Height, Single V-Lock® Locking Device, Steel Bearing, Nitrile Rubber Seal, 169000 N Dynamic/174000 N Static Load, 2000 rpm Grease/2000 rpm Oil Maximum, -50 to 200 deg F, Painted

Application

Offers superior sealing in moist and dirty applications

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:4.24 in
Bolt Circle Diameter:6 in
Bore Diameter:2.1875 in
Finish:Painted
Flange Mounting Type:Piloted
Load Capacity:169000 N Dynamic/174000 N Static
Locking Device:Single V-Lock®
Maximum Speed:2000 rpm Grease/2000 rpm Oil
Overall Depth:3.33 in
Overall Height:3.33 in
Overall Length/Diameter:7.13 in
Seal Material:Nitrile Rubber
Series:QVCW
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
2 3/16 in
