QVF14V208ST QM

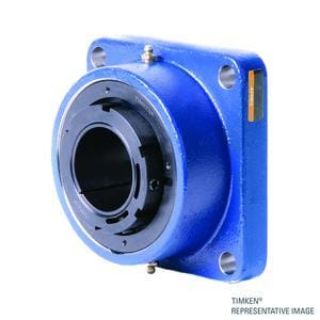

Picture of QVF14V208ST QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVF14V208ST
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,156.08 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Non-Expansion T Seal Solid Block

Description

The V-Lock® locking mechanism evenly distributes force on the shaft, helping eliminate fretting corrosion. V-Lock® provides maximum holding power and prevents over tightening.
Timken®, QVF14V208ST, Spherical Roller Bearing Housed Unit, Non-Expansion T Seal Solid Block, 2-1/2 in Bore, 5.38 in Bolt Center-to-Center Length, 7.6 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 6.63 in Overall Length/Diameter, 3.35 in Overall Depth, 6.63 in Overall Height, Double V-Lock® Locking Device, Cast Steel Seal, 47800 lb Dynamic/52000 lb Static Load, 2600 rpm Grease/3050 rpm Oil Maximum

Application

For use with 2-1/2 in shaft diameter

Features

  • Reliable mechanical withdrawal
  • Preset spherical inner-ring radial internal clearances
  • Highest shaft-holding power
  • Works well in high-speed applications where shaft centering is an issue

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:5.38 in
Bolt Circle Diameter:7.6 in
Bore Diameter:2-1/2 in
Flange Mounting Type:4-Bolt Square
Load Capacity:47800 lb Dynamic/52000 lb Static
Locking Device:Double V-Lock®
Maximum Speed:2600 rpm Grease/3050 rpm Oil
Overall Depth:3.35 in
Overall Height:6.63 in
Overall Length/Diameter:6.63 in
Seal Material:Cast Steel

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
2 1/2 in
