QVF16V215SET QM

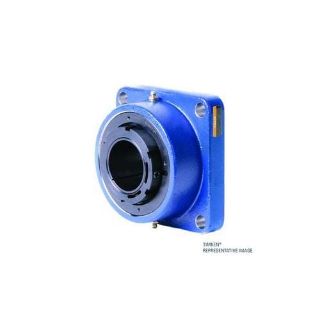

Picture of QVF16V215SET QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVF16V215SET
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,794.97 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Single V-Lock

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVF16V215SET, Square Flange Block, Single V-Lock, Series: QVF, 2.9375 in Bore, 6 in Bolt Center-to-Center Length, 8.48 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 7.44 in Overall Length/Diameter, 3.53 in Overall Depth, 7.44 in Overall Height, Single V-Lock® Locking Device, Steel Bearing, Teflon Seal, 254000 N Dynamic/278000 N Static Load, 2200 rpm Grease/2650 rpm Oil Maximum, -100 to 500 deg F, Painted

Application

Developed for higher-speed applications involving dirty conditions or moisture-affected areas

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
  • When using this seal, the housing comes with a vent fitting
  • Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:6 in
Bolt Circle Diameter:8.48 in
Bore Diameter:2.9375 in
Finish:Painted
Flange Mounting Type:4-Bolt Square
Load Capacity:254000 N Dynamic/278000 N Static
Locking Device:Single V-Lock®
Maximum Speed:2200 rpm Grease/2650 rpm Oil
Overall Depth:3.53 in
Overall Height:7.44 in
Overall Length/Diameter:7.44 in
Seal Material:Teflon
Series:QVF
Temperature Rating:-100 to 500 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
2 15/16 in
