QVFL14V207SO QM

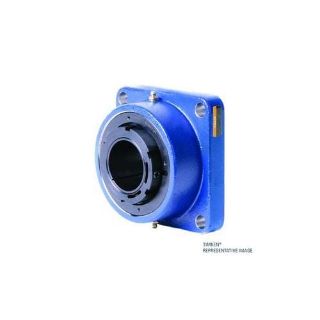

Picture of QVFL14V207SO QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVFL14V207SO
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,298.90 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Single V-Lock

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVFL14V207SO, Square Flange Block, Single V-Lock, Series: QVFL, 2.4375 in Bore, 4.77 in Bolt Center-to-Center Length, 6.75 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 6.19 in Overall Length/Diameter, 3.39 in Overall Depth, 6.19 in Overall Height, Single V-Lock® Locking Device, Steel Bearing, Polyurethane Seal, 213000 N Dynamic/231000 N Static Load, 1400 rpm Grease/1400 rpm Oil Maximum, -40 to 260 deg F, Painted

Application

Works well in high-speed applications where shaft centering is an issue

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Medium Duty contact triple-lip seal made of high-strength urethane for superior abrasion resistance

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:4.77 in
Bolt Circle Diameter:6.75 in
Bore Diameter:2.4375 in
Finish:Painted
Flange Mounting Type:4-Bolt Square
Load Capacity:213000 N Dynamic/231000 N Static
Locking Device:Single V-Lock®
Maximum Speed:1400 rpm Grease/1400 rpm Oil
Overall Depth:3.39 in
Overall Height:6.19 in
Overall Length/Diameter:6.19 in
Seal Material:Polyurethane
Series:QVFL
Temperature Rating:-40 to 260 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
2 7/16 in
