QVFL16V211SEM QM

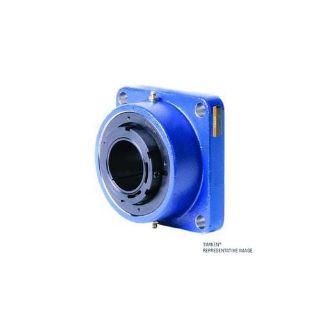

Picture of QVFL16V211SEM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVFL16V211SEM
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,865.34 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Single V-Lock

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVFL16V211SEM, Square Flange Block, Single V-Lock, Series: QVFL, 2.6875 in Bore, 5.56 in Bolt Center-to-Center Length, 7.88 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 7.19 in Overall Length/Diameter, 3.42 in Overall Depth, 7.19 in Overall Height, Single V-Lock® Locking Device, Steel Bearing, Nitrile Rubber Seal, 254000 N Dynamic/278000 N Static Load, 1500 rpm Grease/1500 rpm Oil Maximum, -50 to 200 deg F, Painted

Application

Offers superior sealing in moist and dirty applications

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:5.56 in
Bolt Circle Diameter:7.88 in
Bore Diameter:2.6875 in
Finish:Painted
Flange Mounting Type:4-Bolt Square
Load Capacity:254000 N Dynamic/278000 N Static
Locking Device:Single V-Lock®
Maximum Speed:1500 rpm Grease/1500 rpm Oil
Overall Depth:3.42 in
Overall Height:7.19 in
Overall Length/Diameter:7.19 in
Seal Material:Nitrile Rubber
Series:QVFL
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
2 11/16 in
