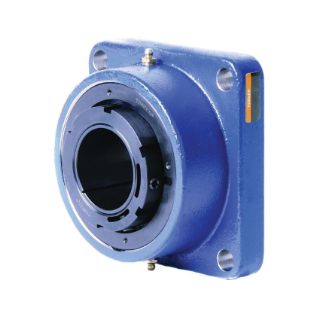

QVFL22V400ST QM

Name: QVFL22V400ST QM
Brand: Timken
SKU: QVFL22V400ST QM
Price: 3,975.04 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

QVFL22V400ST

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$3,975.04 / EA

Description

Brand Name

Timken®

Type

Heavy Duty Non-Expansion Tapered Bore

Description

Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.

Timken®, QVFL22V400ST, Spherical Roller Bearing Unit, Heavy Duty Non-Expansion Tapered Bore, 4 in Bore, 7.6 in Bolt Center-to-Center Length, 10-3/4 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 9-1/2 in Overall Length/Diameter, 4.6 in Overall Depth, 9-1/2 in Overall Height, Single V-Lock® Locking Device, Steel Bearing, DuPont® Teflon® Seal, 125000 lb Dynamic/147000 lb Static Load, 1200 rpm Grease/1700 rpm Oil Maximum, -40 to 250 deg F, Powder Coated

Application

Aggregate, Cement, Metal Mills, Mining, Power Generation, Pulp, Paper, Material Conveying, Commercial, Industrial Building Equipment, Sugar Mills, Agriculture, Waste Management, Water Treatment, HVAC, Fans, Blowers, Cranes, Lifts, Hoists, Off-Highway and Construction Vehicles Industries

Standards

ANSI/ABMA Standard | ATEX 94/9/EC | CE 93/68/EEC | REACH EC 1907/2006/RoHS 2011/65

Features

Patented V-Lock® mechanism evenly distributes force on the shaft, helping eliminate fretting corrosion
Maximum holding power and prevention of overtightening
Reliable mechanical withdraw
Preset spherical inner ring radial internal clearances
Quick installation
Works well with high-speed applications where shaft centering is an issue
Double row bearing
Cast steel housing
Open end type
Solid block housing
Do not operate at bearing temperatures above 250 deg F

Specifications

Bearing Material:	Steel
Bolt Center-to-Center Length:	7.6 in
Bolt Circle Diameter:	10-3/4 in
Bore Diameter:	4 in
Finish:	Powder Coated
Flange Mounting Type:	4-Bolt Square
Load Capacity:	125000 lb Dynamic/147000 lb Static
Locking Device:	Single V-Lock®
Maximum Speed:	1200 rpm Grease/1700 rpm Oil
Overall Depth:	4.6 in
Overall Height:	9-1/2 in
Overall Length/Diameter:	9-1/2 in
Seal Material:	DuPont® Teflon®
Temperature Rating:	-40 to 250 deg F
