QVFX22V315ST QM

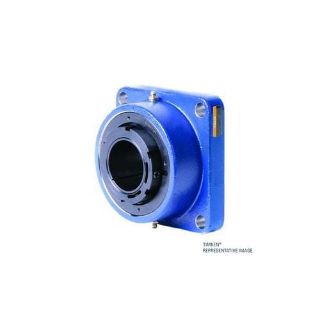

Picture of QVFX22V315ST QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVFX22V315ST
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$4,372.09 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Single V-Lock

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVFX22V315ST, Square Flange Block, Single V-Lock, Series: QVFX, 3.9375 in Bore, 8.31 in Bolt Center-to-Center Length, 11.75 in Diameter Bolt Circle, 4-Bolt Square Flange Mounting, 10.56 in Overall Length/Diameter, 4.49 in Overall Depth, 10.56 in Overall Height, Single V-Lock® Locking Device, Steel Bearing, Teflon Seal, 555000 N Dynamic/653000 N Static Load, 1200 rpm Grease/1700 rpm Oil Maximum, -100 to 500 deg F, Painted

Application

Developed for higher-speed applications involving dirty conditions or moisture-affected areas

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
  • When using this seal, the housing comes with a vent fitting
  • Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:8.31 in
Bolt Circle Diameter:11.75 in
Bore Diameter:3.9375 in
Finish:Painted
Flange Mounting Type:4-Bolt Square
Load Capacity:555000 N Dynamic/653000 N Static
Locking Device:Single V-Lock®
Maximum Speed:1200 rpm Grease/1700 rpm Oil
Overall Depth:4.49 in
Overall Height:10.56 in
Overall Length/Diameter:10.56 in
Seal Material:Teflon
Series:QVFX
Temperature Rating:-100 to 500 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
3 15/16 in
