QVFY11V115SM QM

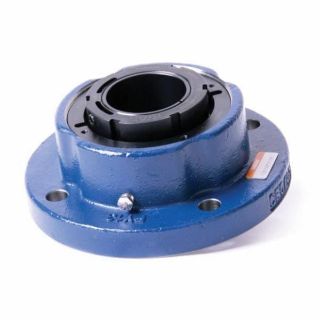

Picture of QVFY11V115SM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVFY11V115SM
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$975.85 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Non-Expansion M Seal Solid Block

Description

The V-Lock® locking mechanism evenly distributes force on the shaft, helping eliminate fretting corrosion. V-Lock® provides maximum holding power and prevents over tightening.
Timken®, QVFY11V115SM, Spherical Roller Bearing Housed Unit, Non-Expansion M Seal Solid Block, 1-15/16 in Bore, 4.07 in Bolt Center-to-Center Length, 5-3/4 in Diameter Bolt Circle, 4-Bolt Round Flange Mounting, 7 in Overall Length/Diameter, 3.09 in Overall Depth, 7 in Overall Height, Single V-Lock® Locking Device, Cast Steel Seal, 31400 lb Dynamic/31900 lb Static Load, 2200 rpm Grease/Oil Maximum

Application

For use with 1-15/16 in shaft diameter

Features

  • Reliable mechanical withdrawal
  • Preset spherical inner-ring radial internal clearances
  • Highest shaft-holding power
  • Works well in high-speed applications where shaft centering is an issue

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:4.07 in
Bolt Circle Diameter:5-3/4 in
Bore Diameter:1-15/16 in
Flange Mounting Type:4-Bolt Round
Load Capacity:31400 lb Dynamic/31900 lb Static
Locking Device:Single V-Lock®
Maximum Speed:2200 rpm Grease/Oil
Overall Depth:3.09 in
Overall Height:7 in
Overall Length/Diameter:7 in
Seal Material:Cast Steel

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
1 15/16 in
