QVFY16V215SB QM

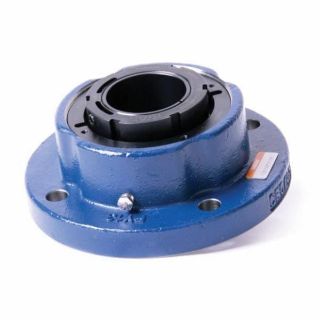

Picture of QVFY16V215SB QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVFY16V215SB
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,865.34 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Non-Expansion B Seal Solid Block

Description

The V-Lock® locking mechanism evenly distributes force on the shaft, helping eliminate fretting corrosion. V-Lock® provides maximum holding power and prevents over tightening.
Timken®, QVFY16V215SB, Spherical Roller Bearing Housed Unit, 2-15/16 in Bore, 5.56 in Bolt Center-to-Center Length, 7.88 in Diameter Bolt Circle, 4-Bolt Round Flange Mounting, 9-1/2 in Overall Length/Diameter, 3.48 in Overall Depth, 9-1/2 in Overall Height, Single V-Lock® Locking Device, Cast Steel Seal, 57200 lb Dynamic/62500 lb Static Load, 1150 rpm Grease/1200 rpm Oil Maximum

Application

For use with 2-15/16 in shaft diameter

Features

  • Reliable mechanical withdrawal
  • Preset spherical inner-ring radial internal clearances
  • Highest shaft-holding power
  • Works well in high-speed applications where shaft centering is an issue

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:5.56 in
Bolt Circle Diameter:7.88 in
Bore Diameter:2-15/16 in
Flange Mounting Type:4-Bolt Round
Load Capacity:57200 lb Dynamic/62500 lb Static
Locking Device:Single V-Lock®
Maximum Speed:1150 rpm Grease/1200 rpm Oil
Overall Depth:3.48 in
Overall Height:9-1/2 in
Overall Length/Diameter:9-1/2 in
Seal Material:Cast Steel

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
2 15/16 in
