QVMC20V090SET QM

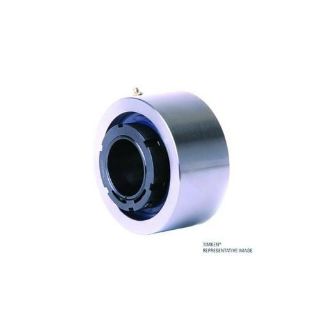

Picture of QVMC20V090SET QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVMC20V090SET
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,244.91 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Single V-Lock

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVMC20V090SET, Cartridge Block, Single V-Lock, Series: QVMC, 3.5433 in Bore, 8.13 in OD, 4.62 in Width, 435000 N Dynamic/502000 N Static Load, Steel Bearing, Teflon Seal, 1200 rpm Grease/2000 rpm Oil Maximum, -100 to 500 deg F, Painted

Application

Developed for higher-speed applications involving dirty conditions or moisture-affected areas

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
  • When using this seal, the housing comes with a vent fitting
  • Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals

Specifications

Bearing Material:Steel
Bore Diameter:3.5433 in
Finish:Painted
Load Capacity:435000 N Dynamic/502000 N Static
Maximum Speed:1200 rpm Grease/2000 rpm Oil
Outside Diameter:8.13 in
Seal Material:Teflon
Series:QVMC
Temperature Rating:-100 to 500 deg F
Width:4.62 in

Products Specifications

Brand Name
Timken
Shaft Diameter
90 mm
