QVPF26V110SEM QM

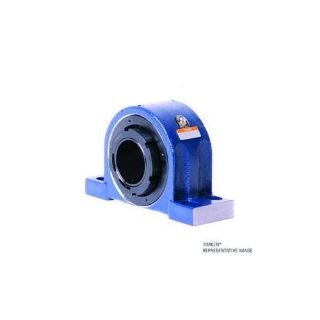

Picture of QVPF26V110SEM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVPF26V110SEM
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$5,669.91 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVPF26V110SEM, Pillow Block, 4.3307 in Bore, 11.88 to 14.5 in Bolt Center-to-Center Length, 4.75 in Base to Bore Centerline, 16.13 in Overall Length, 5.89 in Overall Width, 9.87 in Overall Height, 4-Bolt Mounting, Tapered Bore, 4.75 in Base Width, Single V-Lock® Locking Device, M Seal, Expansion, 555000 N Dynamic/653000 N Static Load, -50 to 200 deg F, 700 rpm Grease/700 rpm Oil Maximum, Steel

Application

Offers superior sealing in moist and dirty applications

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Base to Bore Centerline:4.75 in
Base Width:4.75 in
Bolt Center-to-Center Length:11.88 to 14.5 in
Bore Diameter:4.3307 in
Bore Type:Tapered
Expansion Type:Expansion
Load Capacity:555000 N Dynamic/653000 N Static
Locking Device:Single V-Lock®
Material:Steel
Maximum Speed:700 rpm Grease/700 rpm Oil
Mounting Type:4-Bolt
Overall Height:9.87 in
Overall Length:16.13 in
Overall Width:5.89 in
Seal Type:M Seal
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Locking Type
V-Lock Single Nut
Measuring Units
Metric
Shaft Diameter
110 mm
Type
4 Bolt Pillow Block
