QVPF28V500SET QM

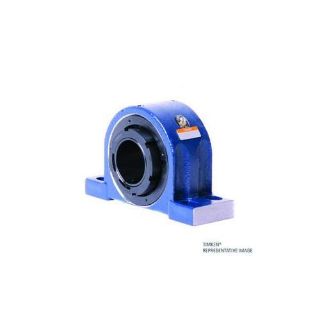

Picture of QVPF28V500SET QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVPF28V500SET
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$8,747.82 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVPF28V500SET, Pillow Block, 5 in Bore, 13.75 to 15.88 in Bolt Center-to-Center Length, 5.5 in Base to Bore Centerline, 17.5 in Overall Length, 6.03 in Overall Width, 11.01 in Overall Height, 4-Bolt Mounting, Tapered Bore, 5.04 in Base Width, Single V-Lock® Locking Device, Expansion, 863000 N Dynamic/1060000 N Static Load, -100 to 500 deg F, 900 rpm Grease/1200 rpm Oil Maximum, Steel

Application

Developed for higher-speed applications involving dirty conditions or moisture-affected areas

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
  • When using this seal, the housing comes with a vent fitting
  • Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals

Specifications

Base to Bore Centerline:5.5 in
Base Width:5.04 in
Bolt Center-to-Center Length:13.75 to 15.88 in
Bore Diameter:5 in
Bore Type:Tapered
Expansion Type:Expansion
Load Capacity:863000 N Dynamic/1060000 N Static
Locking Device:Single V-Lock®
Material:Steel
Maximum Speed:900 rpm Grease/1200 rpm Oil
Mounting Type:4-Bolt
Overall Height:11.01 in
Overall Length:17.5 in
Overall Width:6.03 in
Seal Type:T Seal
Temperature Rating:-100 to 500 deg F

Products Specifications

Brand Name
Timken
Locking Type
V-Lock Single Nut
Measuring Units
Inch
Shaft Diameter
5 in
Type
4 Bolt Pillow Block
