QVPH17V212SO QM

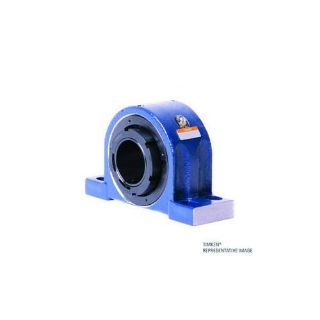

Picture of QVPH17V212SO QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVPH17V212SO
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,251.59 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVPH17V212SO, Pillow Block, 2.75 in Bore, 9.44 to 11.31 in Bolt Center-to-Center Length, 3.75 in Base to Bore Centerline, 12.63 in Overall Length, 3.91 in Overall Width, 7.2 in Overall Height, 4-Bolt Mounting, Tapered Bore, 3.63 in Base Width, Single V-Lock® Locking Device, O Seal, Fixed Expansion, 297000 N Dynamic/320000 N Static Load, -40 to 176 deg F, 1100 rpm Grease/1100 rpm Oil Maximum, Steel, Painted

Application

Works well in high-speed applications where shaft centering is an issue

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Medium Duty contact triple-lip seal made of high-strength urethane for superior abrasion resistance

Specifications

Base to Bore Centerline:3.75 in
Base Width:3.63 in
Bolt Center-to-Center Length:9.44 to 11.31 in
Bore Diameter:2.75 in
Bore Type:Tapered
Expansion Type:Fixed
Finish:Painted
Load Capacity:297000 N Dynamic/320000 N Static
Locking Device:Single V-Lock®
Material:Steel
Maximum Speed:1100 rpm Grease/1100 rpm Oil
Mounting Type:4-Bolt
Overall Height:7.2 in
Overall Length:12.63 in
Overall Width:3.91 in
Seal Type:O Seal
Temperature Rating:-40 to 176 deg F

Products Specifications

Brand Name
Timken
Locking Type
V-Lock Single Nut
Measuring Units
Inch
Shaft Diameter
2 3/4 in
Type
4 Bolt Pillow Block
