QVPH26V407SEO QM

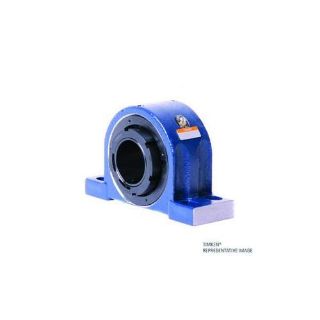

Picture of QVPH26V407SEO QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVPH26V407SEO
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$5,886.65 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVPH26V407SEO, Pillow Block, 4.4375 in Bore, 14.25 to 15.75 in Bolt Center-to-Center Length, 6.0 in Base to Bore Centerline, 17.5 in Overall Length, 6.03 in Overall Width, 11.18 in Overall Height, 4-Bolt Mounting, Tapered Bore, 5.04 in Base Width, Single V-Lock® Locking Device, O Seal, Expansion, 757000 N Dynamic/945000 N Static Load, -40 to 176 deg F, 400 rpm Grease/400 rpm Oil Maximum, Steel, Painted

Application

Works well in high-speed applications where shaft centering is an issue

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Medium Duty contact triple-lip seal made of high-strength urethane for superior abrasion resistance

Specifications

Base to Bore Centerline:6.0 in
Base Width:5.04 in
Bolt Center-to-Center Length:14.25 to 15.75 in
Bore Diameter:4.4375 in
Bore Type:Tapered
Expansion Type:Expansion
Finish:Painted
Load Capacity:757000 N Dynamic/945000 N Static
Locking Device:Single V-Lock®
Material:Steel
Maximum Speed:400 rpm Grease/400 rpm Oil
Mounting Type:4-Bolt
Overall Height:11.18 in
Overall Length:17.5 in
Overall Width:6.03 in
Seal Type:O Seal
Temperature Rating:-40 to 176 deg F

Products Specifications

Brand Name
Timken
Locking Type
V-Lock Single Nut
Measuring Units
Inch
Shaft Diameter
4 7/16 in
Type
4 Bolt Pillow Block
