QVPK22V315ST QM

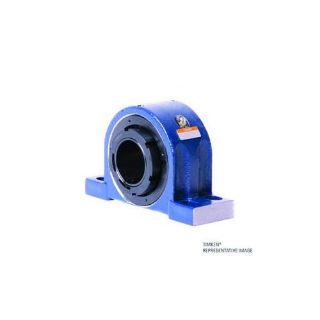

Picture of QVPK22V315ST QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVPK22V315ST
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$6,110.04 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVPK22V315ST, Pillow Block, 3.9375 in Bore, 13.94 to 15.56 in Bolt Center-to-Center Length, 5.75 in Base to Bore Centerline, 18.5 in Overall Length, 5.45 in Overall Width, 10.78 in Overall Height, 4-Bolt Mounting, Tapered Bore, 6.25 in Base Width, Single V-Lock® Locking Device, Fixed Expansion, 555000 N Dynamic/653000 N Static Load, -100 to 500 deg F, 1200 rpm Grease/1700 rpm Oil Maximum, Steel, Painted

Application

Developed for higher-speed applications involving dirty conditions or moisture-affected areas

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
  • When using this seal, the housing comes with a vent fitting
  • Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals

Specifications

Base to Bore Centerline:5.75 in
Base Width:6.25 in
Bolt Center-to-Center Length:13.94 to 15.56 in
Bore Diameter:3.9375 in
Bore Type:Tapered
Expansion Type:Fixed
Finish:Painted
Load Capacity:555000 N Dynamic/653000 N Static
Locking Device:Single V-Lock®
Material:Steel
Maximum Speed:1200 rpm Grease/1700 rpm Oil
Mounting Type:4-Bolt
Overall Height:10.78 in
Overall Length:18.5 in
Overall Width:5.45 in
Seal Type:T Seal
Temperature Rating:-100 to 500 deg F

Products Specifications

Brand Name
Timken
Locking Type
V-Lock Single Nut
Measuring Units
Inch
Shaft Diameter
3 15/16 in
Type
4 Bolt Pillow Block
