QVPL12V204SN QM

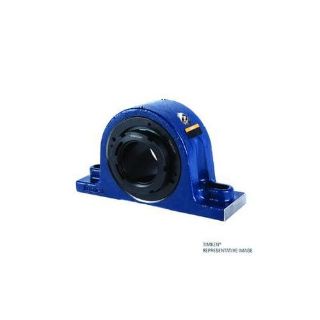

Picture of QVPL12V204SN QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVPL12V204SN
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,184.07 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVPL12V204SN, Pillow Block, 2.25 in Bore, 6.5 to 7.06 in Bolt Center-to-Center Length, 2.5 in Base to Bore Centerline, 8.88 in Overall Length, 3.3 in Overall Width, 5.25 in Overall Height, 2-Bolt Mounting, Tapered Bore, 2.58 in Base Width, Single V-Lock® Locking Device, N Seal, Fixed Expansion, 169000 N Dynamic/174000 N Static Load, -30 to 400 deg F, 2000 rpm Grease/2000 rpm Oil Maximum, Steel, Painted

Application

Works well in high-speed applications where shaft centering is an issue

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Medium-duty contact triple-lip seal, made of Viton
  • This seal provides excellent chemical resistance and can operate at higher temperatures than nitrile rubber

Specifications

Base to Bore Centerline:2.5 in
Base Width:2.58 in
Bolt Center-to-Center Length:6.5 to 7.06 in
Bore Diameter:2.25 in
Bore Type:Tapered
Expansion Type:Fixed
Finish:Painted
Load Capacity:169000 N Dynamic/174000 N Static
Locking Device:Single V-Lock®
Material:Steel
Maximum Speed:2000 rpm Grease/2000 rpm Oil
Mounting Type:2-Bolt
Overall Height:5.25 in
Overall Length:8.88 in
Overall Width:3.3 in
Seal Type:N Seal
Temperature Rating:-30 to 400 deg F

Products Specifications

Brand Name
Timken
Locking Type
V-Lock Single Nut
Measuring Units
Inch
Shaft Diameter
2 1/4 in
Type
2 Bolt Pillow Block
