QVPL16V300SB QM

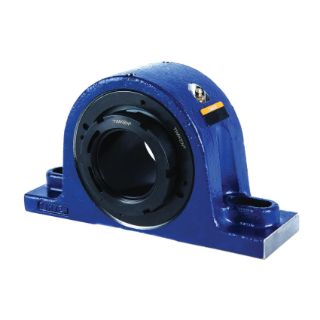

Picture of QVPL16V300SB QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVPL16V300SB
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,831.03 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

S2000 Style Solid Block

Description

Timken®, QVPL16V300SB, Spherical Roller Bearing Housed Unit, S2000 Style Solid Block, 3 in Bore, 7.7 to 8.4 in Bolt Center-to-Center Length, 3-1/4 in Base to Bore Centerline, 10.44 in Overall Length, 3.59 in Overall Width, 6.59 in Overall Height, Two-Bolt Base Mounting, Tapered Bore, 3 in Base Width, Single V-Lock® Locking Device, Non-Expansion (Fixed), 57200 lb Dynamic/62500 lb Static Load, 1150 rpm Grease/1200 rpm Oil Maximum, Cast Steel

Application

For use with 3 in shaft diameter

Specifications

Base to Bore Centerline:3-1/4 in
Base Width:3 in
Bolt Center-to-Center Length:7.7 to 8.4 in
Bore Diameter:3 in
Bore Type:Tapered
Expansion Type:Non-Expansion (Fixed)
Load Capacity:57200 lb Dynamic/62500 lb Static
Locking Device:Single V-Lock®
Material:Cast Steel
Maximum Speed:1150 rpm Grease/1200 rpm Oil
Mounting Type:Two-Bolt Base
Overall Height:6.59 in
Overall Length:10.44 in
Overall Width:3.59 in
Seal Type:B Seal

Products Specifications

Brand Name
Timken
Locking Type
V-Lock Single Nut
Measuring Units
Inch
Shaft Diameter
3 in
Type
2 Bolt Pillow Block
