QVPN20V307SB QM

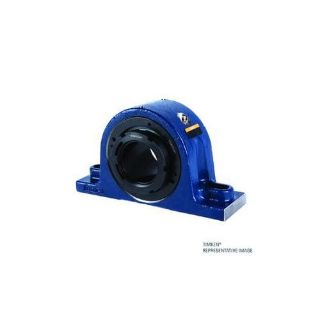

Picture of QVPN20V307SB QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVPN20V307SB
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,584.88 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVPN20V307SB, Pillow Block, 3.4375 in Bore, 10.88 to 12.88 in Bolt Center-to-Center Length, 4.409 in Base to Bore Centerline, 14.5 in Overall Length, 3.94 in Overall Width, 8.54 in Overall Height, 2-Bolt Mounting, Tapered Bore, 3.42 in Base Width, Single V-Lock® Locking Device, B Seal, Fixed Expansion, 435000 N Dynamic/502000 N Static Load, -50 to 200 deg F, 900 rpm Grease/900 rpm Oil Maximum, Steel, Painted

Application

Designed for extreme moisture, fine dust or extremely dirty applications

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Double-lip seal with garter spring for maximum contact and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself
  • Made from nitrile rubber and designed for extreme moisture, fine dust or extremely dirty applications

Specifications

Base to Bore Centerline:4.409 in
Base Width:3.42 in
Bolt Center-to-Center Length:10.88 to 12.88 in
Bore Diameter:3.4375 in
Bore Type:Tapered
Expansion Type:Fixed
Finish:Painted
Load Capacity:435000 N Dynamic/502000 N Static
Locking Device:Single V-Lock®
Material:Steel
Maximum Speed:900 rpm Grease/900 rpm Oil
Mounting Type:2-Bolt
Overall Height:8.54 in
Overall Length:14.5 in
Overall Width:3.94 in
Seal Type:B Seal
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Locking Type
V-Lock Single Nut
Measuring Units
Inch
Shaft Diameter
3 7/16 in
Type
2 Bolt Pillow Block
