QVPR16V300SEM QM

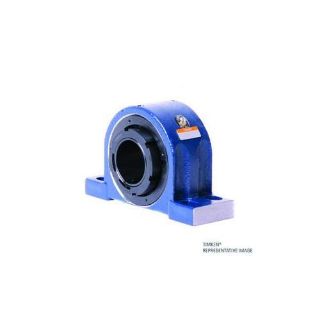

Picture of QVPR16V300SEM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVPR16V300SEM
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,954.22 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVPR16V300SEM, Pillow Block, 3 in Bore, 8 to 9.6 in Bolt Center-to-Center Length, 3.13 in Base to Bore Centerline, 10.83 in Overall Length, 3.78 in Overall Width, 6.47 in Overall Height, 4-Bolt Mounting, Tapered Bore, 3.38 in Base Width, Single V-Lock® Locking Device, M Seal, Expansion, 254000 N Dynamic/278000 N Static Load, -50 to 200 deg F, 1500 rpm Grease/1500 rpm Oil Maximum, Steel, Painted

Application

Offers superior sealing in moist and dirty applications

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Base to Bore Centerline:3.13 in
Base Width:3.38 in
Bolt Center-to-Center Length:8 to 9.6 in
Bore Diameter:3 in
Bore Type:Tapered
Expansion Type:Expansion
Finish:Painted
Load Capacity:254000 N Dynamic/278000 N Static
Locking Device:Single V-Lock®
Material:Steel
Maximum Speed:1500 rpm Grease/1500 rpm Oil
Mounting Type:4-Bolt
Overall Height:6.47 in
Overall Length:10.83 in
Overall Width:3.78 in
Seal Type:M Seal
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Locking Type
V-Lock Single Nut
Measuring Units
Inch
Shaft Diameter
3 in
Type
4 Bolt Pillow Block
