QVPR19V304SEB QM

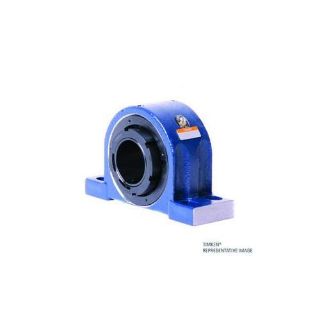

Picture of QVPR19V304SEB QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVPR19V304SEB
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,931.73 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVPR19V304SEB, Pillow Block, 3.25 in Bore, 9.25 to 11.25 in Bolt Center-to-Center Length, 3.75 in Base to Bore Centerline, 13.63 in Overall Length, 4.19 in Overall Width, 7.69 in Overall Height, 4-Bolt Mounting, Tapered Bore, 3.75 in Base Width, Single V-Lock® Locking Device, B Seal, Expansion, 385000 N Dynamic/441000 N Static Load, -50 to 200 deg F, 950 rpm Grease/1000 rpm Oil Maximum, Steel, Painted

Application

Designed for extreme moisture, fine dust or extremely dirty applications

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Double-lip seal with garter spring for maximum contact and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself
  • Made from nitrile rubber and designed for extreme moisture, fine dust or extremely dirty applications

Specifications

Base to Bore Centerline:3.75 in
Base Width:3.75 in
Bolt Center-to-Center Length:9.25 to 11.25 in
Bore Diameter:3.25 in
Bore Type:Tapered
Expansion Type:Expansion
Finish:Painted
Load Capacity:385000 N Dynamic/441000 N Static
Locking Device:Single V-Lock®
Material:Steel
Maximum Speed:950 rpm Grease/1000 rpm Oil
Mounting Type:4-Bolt
Overall Height:7.69 in
Overall Length:13.63 in
Overall Width:4.19 in
Seal Type:B Seal
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Locking Type
V-Lock Single Nut
Measuring Units
Inch
Shaft Diameter
3 1/4 in
Type
4 Bolt Pillow Block
