QVSN16V070SET QM

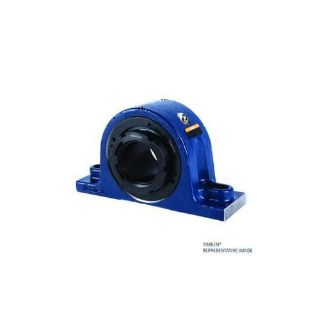

Picture of QVSN16V070SET QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVSN16V070SET
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,917.82 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVSN16V070SET, Pillow Block, Series: QVSN, 2.7559 in Bore, 9.49 to 10.98 in Bolt Center-to-Center Length, 3.75 in Base to Bore Centerline, 12.4 in Overall Length, 3.58 in Overall Width, 7.2 in Overall Height, 2-Bolt Mounting, Tapered Bore, 2.99 in Base Width, Single V-Lock® Locking Device, Expansion, 57200 lb Dynamic/62500 lb Static Load, -100 to 500 deg F, 2200 rpm Grease/2650 rpm Oil Maximum, Steel, Painted

Application

Developed for higher-speed applications involving dirty conditions or moisture-affected areas

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
  • When using this seal, the housing comes with a vent fitting
  • Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals

Specifications

Base to Bore Centerline:3.75 in
Base Width:2.99 in
Bolt Center-to-Center Length:9.49 to 10.98 in
Bore Diameter:2.7559 in
Bore Type:Tapered
Expansion Type:Expansion
Finish:Painted
Load Capacity:57200 lb Dynamic/62500 lb Static
Locking Device:Single V-Lock®
Material:Steel
Maximum Speed:2200 rpm Grease/2650 rpm Oil
Mounting Type:2-Bolt
Overall Height:7.2 in
Overall Length:12.4 in
Overall Width:3.58 in
Seal Type:T Seal
Series:QVSN
Temperature Rating:-100 to 500 deg F

Products Specifications

Brand Name
Timken
Locking Type
V-Lock Single Nut
Measuring Units
Metric
Shaft Diameter
70 mm
Type
2 Bolt Pillow Block
