QVSN22V312SM QM

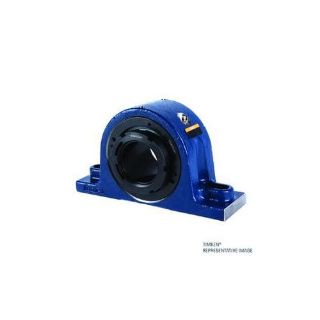

Picture of QVSN22V312SM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVSN22V312SM
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,862.77 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVSN22V312SM, Pillow Block, Series: QVSN, 3.75 in Bore, 12.56 to 14.41 in Bolt Center-to-Center Length, 4.921 in Base to Bore Centerline, 16.14 in Overall Length, 4.57 in Overall Width, 9.49 in Overall Height, 2-Bolt Mounting, Tapered Bore, 3.98 in Base Width, Single V-Lock® Locking Device, M Seal, Non-Expansion (Fixed), 125000 lb Dynamic/147000 lb Static Load, -50 to 200 deg F, 900 rpm Grease/900 rpm Oil Maximum, Steel, Painted

Application

Offers superior sealing in moist and dirty applications

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Base to Bore Centerline:4.921 in
Base Width:3.98 in
Bolt Center-to-Center Length:12.56 to 14.41 in
Bore Diameter:3.75 in
Bore Type:Tapered
Expansion Type:Non-Expansion (Fixed)
Finish:Painted
Load Capacity:125000 lb Dynamic/147000 lb Static
Locking Device:Single V-Lock®
Material:Steel
Maximum Speed:900 rpm Grease/900 rpm Oil
Mounting Type:2-Bolt
Overall Height:9.49 in
Overall Length:16.14 in
Overall Width:4.57 in
Seal Type:M Seal
Series:QVSN
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Locking Type
V-Lock Single Nut
Measuring Units
Inch
Shaft Diameter
3 3/4 in
Type
2 Bolt Pillow Block
