QVTU19V304SB QM

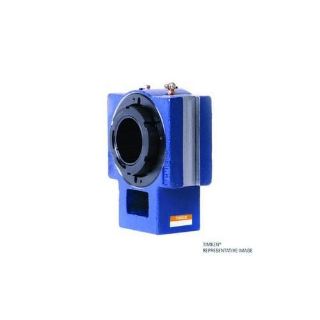

Picture of QVTU19V304SB QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVTU19V304SB
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,999.27 / EA

Description

Brand Name

Timken®

Type

Single V-Lock

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVTU19V304SB, Hanger Block, Single V-Lock, Series: QVTU, 3-1/4 in Bore, 10.12 in Length, 3.92 in Width, 7.63 in Height, 385000 N Dynamic/441000 N Static Load, Steel Bearing, -50 to 200 deg F, Painted

Application

Designed for extreme moisture, fine dust or extremely dirty applications

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Double-lip seal with garter spring for maximum contact and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself
  • Made from nitrile rubber and designed for extreme moisture, fine dust or extremely dirty applications

Specifications

Bearing Material:Steel
Bore Diameter:3-1/4 in
Finish:Painted
Height:7.63 in
Length:10.12 in
Load Capacity:385000 N Dynamic/441000 N Static
Series:QVTU
Temperature Rating:-50 to 200 deg F
Width:3.92 in

Products Specifications

Brand Name
Timken
Shaft Diameter
3 1/4 in
