QVTU19V304ST QM

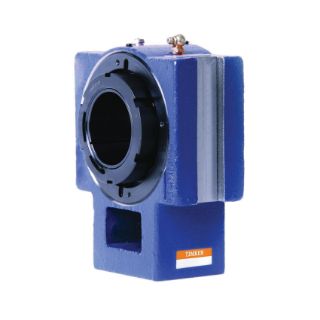

Picture of QVTU19V304ST QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVTU19V304ST
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,999.27 / EA

Description

Brand Name

Timken®

Type

Heavy Duty Non-Expansion

Description

Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, QVTU19V304ST, Take-Up Spherical Roller Bearing Unit, Heavy Duty Non-Expansion, Series: QVTU, 3-1/4 in Bore, 10.12 in Length, 3.9 in Width, 7.63 in Height, 86600 lb Dynamic/99000 lb Static Load, Steel Bearing, 32 to 104 deg F, Powder Coated

Features

  • Patented V-Lock® mechanism evenly distributes force on the shaft, helping eliminate fretting corrosion
  • Maximum holding power and prevention of overtightening
  • Reliable mechanical withdraw
  • Preset spherical inner ring radial internal clearances
  • Single nut
  • 22219 bearing insert bore series
  • Cast steel housing
  • Wide slot mounting
  • Tapered bore, double row and open end

Specifications

Bearing Material:Steel
Bore Diameter:3-1/4 in
Finish:Powder Coated
Height:7.63 in
Length:10.12 in
Load Capacity:86600 lb Dynamic/99000 lb Static
Series:QVTU
Temperature Rating:32 to 104 deg F
Width:3.9 in

Products Specifications

Brand Name
Timken
Shaft Diameter
3 1/4 in
