QVVCW12V203ST QM

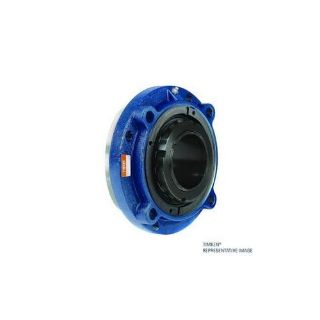

Picture of QVVCW12V203ST QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVVCW12V203ST
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,307.68 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVVCW12V203ST, Piloted Flange Cartridge, Series: QVVCW, 2.1875 in Bore, 4.2 in Bolt Center-to-Center Length, 6 in Diameter Bolt Circle, Piloted Flange Mounting, 7.13 in Overall Length/Diameter, 4.02 in Overall Depth, Double V-Lock® Locking Device, Steel Bearing, Teflon Seal, 169000 N Dynamic/174000 N Static Load, 3000 rpm Grease/3500 rpm Oil Maximum, -100 to 500 deg F, Painted

Application

Developed for higher-speed applications involving dirty conditions or moisture-affected areas

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
  • When using this seal, the housing comes with a vent fitting
  • Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:4.2 in
Bolt Circle Diameter:6 in
Bore Diameter:2.1875 in
Finish:Painted
Flange Mounting Type:Piloted
Load Capacity:169000 N Dynamic/174000 N Static
Locking Device:Double V-Lock®
Maximum Speed:3000 rpm Grease/3500 rpm Oil
Overall Depth:4.02 in
Overall Length/Diameter:7.13 in
Seal Material:Teflon
Series:QVVCW
Temperature Rating:-100 to 500 deg F

Products Specifications

Brand Name
Timken
