QVVFY11V200SB QM

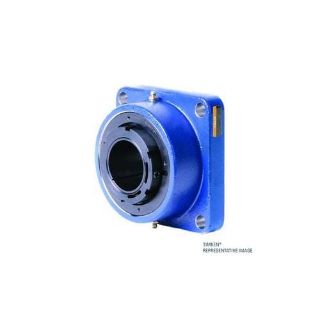

Picture of QVVFY11V200SB QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVVFY11V200SB
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$975.85 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVVFY11V200SB, Round Flange Block, Series: QVVF, 2 in Bore, 4.07 in Bolt Center-to-Center Length, 5.7 in Diameter Bolt Circle, Round Flange Flange Mounting, 7 in Overall Length/Diameter, 4.02 in Overall Depth, 7 in Overall Height, Double V-Lock® Locking Device, Steel Bearing, Nitrile Rubber Seal, 140000 N Dynamic/142000 N Static Load, 1600 rpm Grease/1800 rpm Oil Maximum, -50 to 200 deg F, Painted

Application

Designed for extreme moisture, fine dust or extremely dirty applications

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Double-lip seal with garter spring for maximum contact and a heavy-duty steel shield that protects the seal from large pieces of debris that could damage the seal itself
  • Made from nitrile rubber and designed for extreme moisture, fine dust or extremely dirty applications

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:4.07 in
Bolt Circle Diameter:5.7 in
Bore Diameter:2 in
Finish:Painted
Flange Mounting Type:Round Flange
Load Capacity:140000 N Dynamic/142000 N Static
Locking Device:Double V-Lock®
Maximum Speed:1600 rpm Grease/1800 rpm Oil
Overall Depth:4.02 in
Overall Height:7 in
Overall Length/Diameter:7 in
Seal Material:Nitrile Rubber
Series:QVVF
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
2 in
