QVVFY14V207SM QM

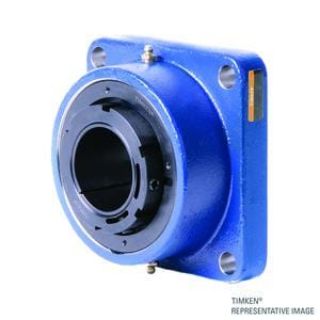

Picture of QVVFY14V207SM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVVFY14V207SM
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,237.09 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Heavy Duty Non-Expansion Tapered Bore

Description

Timken® solid block mounted spherical roller bearings (housed units) feature high-performance, low operating temperature Timken® double row spherical roller bearings, cast steel housings, unique locking and sealing design options to offer protection against contaminants in the harshest environments. Timken® spherical roller bearings are ideal for handling high radial loads.
Timken®, QVVFY14V207SM, Spherical Roller Bearing Unit, Heavy Duty Non-Expansion Tapered Bore, 2-7/16 in Bore, 4.77 in Bolt Center-to-Center Length, 6-3/4 in Diameter Bolt Circle, 4-Bolt Round Flange Mounting, 8.13 in Overall Length/Diameter, 3.99 in Overall Depth, Double V-Lock® Locking Device, Steel Bearing, Nitrile Rubber Seal, 47800 lb Dynamic/52000 lb Static Load, 1700 rpm Maximum, -40 to 250 deg F, Powder Coated

Application

Aggregate, Cement, Metal Mills, Mining, Power Generation, Pulp, Paper, Material Conveying, Commercial, Industrial Building Equipment, Sugar Mills, Agriculture, Waste Management, Water Treatment, HVAC, Fans, Blowers, Cranes, Lifts, Hoists, Off-Highway and Construction Vehicles Industries

Standards

ANSI/ABMA Standard | ATEX 94/9/EC | CE 93/68/EEC | REACH EC 1907/2006/RoHS 2011/65

Features

  • Patented V-Lock® mechanism evenly distributes force on the shaft, helping eliminate fretting corrosion
  • Maximum holding power and prevention of overtightening
  • Reliable mechanical withdraw
  • Preset spherical inner ring radial internal clearances
  • Quick installation
  • Works well with high-speed applications where shaft centering is an issue
  • Double nut facilitates the withdraw of the unit from the shaft
  • Triple-lip contacting, self-purging nitrile rubber seal is excellent in moist and dirty applications, chemical and corrosion resistant
  • Double row bearing
  • Cast steel housing
  • Open end type
  • Solid block housing
  • Do not operate at bearing temperatures above 250 deg F

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:4.77 in
Bolt Circle Diameter:6-3/4 in
Bore Diameter:2-7/16 in
Finish:Powder Coated
Flange Mounting Type:4-Bolt Round
Load Capacity:47800 lb Dynamic/52000 lb Static
Locking Device:Double V-Lock®
Maximum Speed:1700 rpm
Overall Depth:3.99 in
Overall Length/Diameter:8.13 in
Seal Material:Nitrile Rubber
Temperature Rating:-40 to 250 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
2 7/16 in
