QVVPH26V407SEN QM

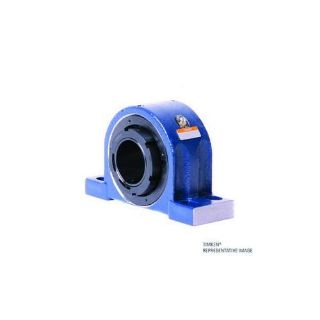

Picture of QVVPH26V407SEN QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVVPH26V407SEN
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$6,166.99 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVVPH26V407SEN, Pillow Block, Series: QVVPH, 4.4375 in Bore, 14.25 to 15.75 in Bolt Center-to-Center Length, 6 in Base to Bore Centerline, 17.5 in Overall Length, 7.02 in Overall Width, 11.18 in Overall Height, 4-Bolt Mounting, Tapered Bore, 5.04 in Base Width, Double V-Lock® Locking Device, N Seal, Expansion, 170000 lb Dynamic/212000 lb Static Load, -30 to 400 deg F, 700 rpm Grease/700 rpm Oil Maximum, Steel, Painted

Application

Works well in high-speed applications where shaft centering is an issue

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Medium-duty contact triple-lip seal, made of Viton
  • This seal provides excellent chemical resistance and can operate at higher temperatures than nitrile rubber

Specifications

Base to Bore Centerline:6 in
Base Width:5.04 in
Bolt Center-to-Center Length:14.25 to 15.75 in
Bore Diameter:4.4375 in
Bore Type:Tapered
Expansion Type:Expansion
Finish:Painted
Load Capacity:170000 lb Dynamic/212000 lb Static
Locking Device:Double V-Lock®
Material:Steel
Maximum Speed:700 rpm Grease/700 rpm Oil
Mounting Type:4-Bolt
Overall Height:11.18 in
Overall Length:17.5 in
Overall Width:7.02 in
Seal Type:N Seal
Series:QVVPH
Temperature Rating:-30 to 400 deg F

Products Specifications

Brand Name
Timken
Locking Type
V-Lock Double Nut
Measuring Units
Inch
Shaft Diameter
4 7/16 in
Type
4 Bolt Pillow Block
