QVVPK17V215ST QM

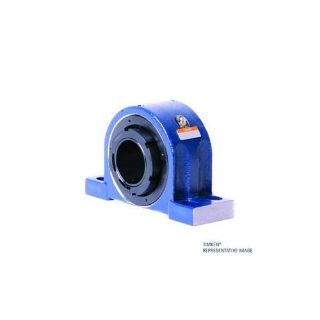

Picture of QVVPK17V215ST QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVVPK17V215ST
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,774.81 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVVPK17V215ST, Pillow Block, Series: QVVPK, 2.9375 in Bore, 10.81 to 12.19 in Bolt Center-to-Center Length, 4.0 in Base to Bore Centerline, 15 in Overall Length, 4.47 in Overall Width, 7.92 in Overall Height, 4-Bolt Mounting, Tapered Bore, 4.75 in Base Width, Double V-Lock® Locking Device, Fixed Expansion, 297000 N Dynamic/320000 N Static Load, -100 to 500 deg F, 2000 rpm Grease/2400 rpm Oil Maximum, Steel, Painted

Application

Developed for higher-speed applications involving dirty conditions or moisture-affected areas

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Labyrinth seal consists of a Teflon ring pressed onto the inner ring of the bearing that floats between two pieces of formed steel to accommodate misalignment
  • When using this seal, the housing comes with a vent fitting
  • Developed for higher-speed applications involving dirty conditions or moisture-affected areas, is able to operate at higher temperatures and is impervious to most chemicals

Specifications

Base to Bore Centerline:4.0 in
Base Width:4.75 in
Bolt Center-to-Center Length:10.81 to 12.19 in
Bore Diameter:2.9375 in
Bore Type:Tapered
Expansion Type:Fixed
Finish:Painted
Load Capacity:297000 N Dynamic/320000 N Static
Locking Device:Double V-Lock®
Material:Steel
Maximum Speed:2000 rpm Grease/2400 rpm Oil
Mounting Type:4-Bolt
Overall Height:7.92 in
Overall Length:15 in
Overall Width:4.47 in
Seal Type:T Seal
Series:QVVPK
Temperature Rating:-100 to 500 deg F

Products Specifications

Brand Name
Timken
Locking Type
V-Lock Double Nut
Measuring Units
Inch
Shaft Diameter
2 15/16 in
Type
4 Bolt Pillow Block
