QVVPX16V212SEO QM

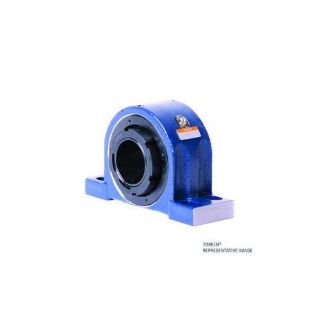

Picture of QVVPX16V212SEO QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVVPX16V212SEO
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,579.34 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVVPX16V212SEO, Pillow Block, Series: QVVPX, 2.75 in Bore, 9.06 to 10.44 in Bolt Center-to-Center Length, 3.5 in Base to Bore Centerline, 13 in Overall Length, 4.22 in Overall Width, 6.83 in Overall Height, 4-Bolt Mounting, Tapered Bore, 4.25 in Base Width, Double V-Lock® Locking Device, O Seal, Expansion, 254000 N Dynamic/278000 N Static Load, -40 to 176 deg F, 1150 rpm Grease/1200 rpm Oil Maximum, Steel

Application

Works well in high-speed applications where shaft centering is an issue

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Medium Duty contact triple-lip seal made of high-strength urethane for superior abrasion resistance

Specifications

Base to Bore Centerline:3.5 in
Base Width:4.25 in
Bolt Center-to-Center Length:9.06 to 10.44 in
Bore Diameter:2.75 in
Bore Type:Tapered
Expansion Type:Expansion
Load Capacity:254000 N Dynamic/278000 N Static
Locking Device:Double V-Lock®
Material:Steel
Maximum Speed:1150 rpm Grease/1200 rpm Oil
Mounting Type:4-Bolt
Overall Height:6.83 in
Overall Length:13 in
Overall Width:4.22 in
Seal Type:O Seal
Series:QVVPX
Temperature Rating:-40 to 176 deg F

Products Specifications

Brand Name
Timken
Locking Type
V-Lock Double Nut
Measuring Units
Inch
Shaft Diameter
2 3/4 in
Type
4 Bolt Pillow Block
