QVVPX28V500SM QM

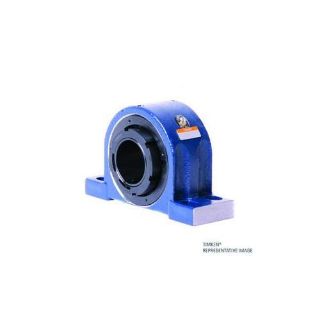

Picture of QVVPX28V500SM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVVPX28V500SM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$11,546.10 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVVPX28V500SM, Pillow Block, Series: QVVPX, 5 in Bore, 15.25 to 16.75 in Bolt Center-to-Center Length, 6.125 in Base to Bore Centerline, 20.25 in Overall Length, 7.02 in Overall Width, 11.55 in Overall Height, 4-Bolt Mounting, Tapered Bore, 6.75 in Base Width, Double V-Lock® Locking Device, M Seal, Non-Expansion (Fixed), 194000 lb Dynamic/237000 lb Static Load, -50 to 200 deg F, 650 rpm Grease/650 rpm Oil Maximum, Steel, Painted

Application

Offers superior sealing in moist and dirty applications

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Base to Bore Centerline:6.125 in
Base Width:6.75 in
Bolt Center-to-Center Length:15.25 to 16.75 in
Bore Diameter:5 in
Bore Type:Tapered
Expansion Type:Non-Expansion (Fixed)
Finish:Painted
Load Capacity:194000 lb Dynamic/237000 lb Static
Locking Device:Double V-Lock®
Material:Steel
Maximum Speed:650 rpm Grease/650 rpm Oil
Mounting Type:4-Bolt
Overall Height:11.55 in
Overall Length:20.25 in
Overall Width:7.02 in
Seal Type:M Seal
Series:QVVPX
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Locking Type
V-Lock Double Nut
Measuring Units
Inch
Shaft Diameter
5 in
Type
4 Bolt Pillow Block
