QVVSN22V315SEM QM

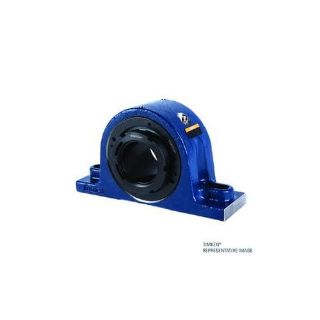

Picture of QVVSN22V315SEM QM
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
QVVSN22V315SEM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,862.77 / EA

Description

Brand Name

Timken®

Description

Engineered for the harshest conditions, these units feature multiple steel-housing and locking options with complete multi-point sealing solutions (full range of end covers) to optimize your uptime. This drop-in solution is interchangeable with a large range of products and keeps contaminates out for efficient operations.
Timken®, QVVSN22V315SEM, Pillow Block, Series: QVVSN, 3.9375 in Bore, 12.58 to 14.42 in Bolt Center-to-Center Length, 4.92 in Base to Bore Centerline, 16.14 in Overall Length, 5.12 in Overall Width, 9.48 in Overall Height, 2-Bolt Mounting, Tapered Bore, 3.96 in Base Width, Double V-Lock® Locking Device, M Seal, Expansion, 125000 lb Dynamic/147000 lb Static Load, -50 to 200 deg F, 900 rpm Grease/900 rpm Oil Maximum, Steel, Painted

Application

Offers superior sealing in moist and dirty applications

Features

  • Reliable mechanical withdrawal, preset spherical inner ring radial internal clearances (feeler gages are not required), quick installation, high shaft-holding power, works well in high-speed applications where shaft centering is an issue
  • Medium Duty contact triple-lip seal, made of nitrile rubber, offers superior sealing in moist and dirty applications
  • It is chemical and corrosion resistant and provides excellent lubrication retention
  • It also allows excess grease to purge from the bearing cavity

Specifications

Base to Bore Centerline:4.92 in
Base Width:3.96 in
Bolt Center-to-Center Length:12.58 to 14.42 in
Bore Diameter:3.9375 in
Bore Type:Tapered
Expansion Type:Expansion
Finish:Painted
Load Capacity:125000 lb Dynamic/147000 lb Static
Locking Device:Double V-Lock®
Material:Steel
Maximum Speed:900 rpm Grease/900 rpm Oil
Mounting Type:2-Bolt
Overall Height:9.48 in
Overall Length:16.14 in
Overall Width:5.12 in
Seal Type:M Seal
Series:QVVSN
Temperature Rating:-50 to 200 deg F

Products Specifications

Brand Name
Timken
Locking Type
V-Lock Double Nut
Measuring Units
Inch
Shaft Diameter
3 15/16 in
Type
2 Bolt Pillow Block
