R-3W-SR-KB GEP

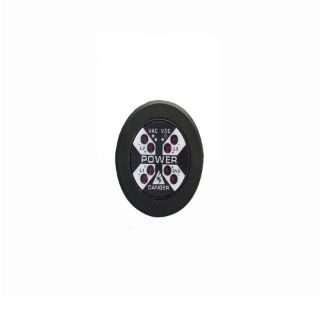

SafeSide® R-3W-SR-KB Non-Flashing Voltage Indicator With Solid-On LEDs or Flashing LEDs and Bezel, 40/750 VAC, 30/1000 VDC, 1.2 W, 30 mm Pushbutton/Pilot Hole Mount, UL Listed
Manufacturer part number: R-3W-SR-KB
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
9 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$268.00

Product Details

Brand Name

SafeSide®

Type

Non-Flashing

Description

SafeSide thru-door voltage indicators provide electrical safety information while the panel doors are safely closed. This one-size-fits-all solution detects 3-phase AC or DC voltage from 40-750 VAC/30-1000 VDC. The encapsulated construction and redundant circuit design means rugged reliability. SafeSide products are available with flashing LEDs (R-3W).
SafeSide® Voltage Indicator, Non-Flashing, 40/750 VAC, 30/1000 VDC, 1.2 W Wattage, Specifications Met: UL Listed, 30 mm Pushbutton/Pilot Hole Mounting, NEMA 4X/12/13 NEMA Rating, -20 to 55 deg C, 1.549 in Dia x 3.071 in H Dimensions

Standards

UL Listed

Features

  • Redundant circuitry/long-life LED's
  • Potted construction with 6 ft leads
  • Phase insensitive
  • High surge immunity

Specifications

Dimensions:1.549 in Dia x 3.071 in H
Mounting Type:30 mm Pushbutton/Pilot Hole
NEMA Rating:NEMA 4X/12/13
Specifications Met:UL Listed
Temperature Rating:-20 to 55 deg C
Voltage Rating:40/750 VAC, 30/1000 VDC
Wattage:1.2 W
