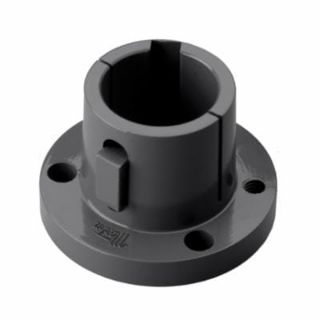

Actual Product May Vary From Image

R1 1 15/16 MSG

Name: R1 1 15/16 MSG
Brand: Martin Sprocket & Gear
SKU: R1 1 15/16 MSG
Price: 146.00 USD
Availability: OutOfStock

Martin R1 1 15/16 Standard MST Bushing, 1-15/16 in Dia Bore, 3-7/8 in Small End/4 in Large End Dia Barrel, 5-3/8 in Dia Flange, 2.88 in OAL, Ductile Iron

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: R1 1 15/16

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$146.00

Qty:

Product Details

Brand Name

Martin

Type

Standard

Description

MST® bushings are easy to install and remove. They are split through the barrel and have a taper to provide a true clamp on the shaft. They are keyed to both the shaft and the hub to help during "blind" installations.

Martin MST Bushing, Standard, 1-15/16 in Bore Dia, 3-7/8 in Small End/4 in Large End Barrel Dia, 5-3/4 in Hub Dia, 4-5/8 in Bolt Circle, 5-3/8 in Flange Dia, 0.62 in Flange Thickness, 3 Bolt Holes, 3/8-16 x 1-3/4 in (Cap Screw)/5/16-18 x 5/16 in (Set Screw) Screw, For Use With: MST® Sprockets and HR1 Weld-On Hub, 2.88 in Overall Length, 1/2 x 1/4 in Keyway, Ductile Iron

Standards

ANSI B15.1

Features

Size 1/R1 bushing

Specifications

Barrel Diameter:	3-7/8 in Small End/4 in Large End
Bolt Circle Diameter:	4-5/8 in
Bore Diameter:	1-15/16 in
Country of Origin:	US
Flange Diameter:	5-3/8 in
Flange Thickness:	0.62 in
Hub Diameter:	5-3/4 in
Keyway Size:	1/2 x 1/4 in
Material:	Ductile Iron
Number of Bolt Holes:	3
Overall Length:	2.88 in
Screw Size:	3/8-16 x 1-3/4 in (Cap Screw)/5/16-18 x 5/16 in (Set Screw)
Suitable For Use With:	MST® Sprockets and HR1 Weld-On Hub
