R1 3 5/8 MSG

Name: R1 3 5/8 MSG
Brand: Martin Sprocket & Gear
SKU: R1 3 5/8 MSG
Price: 160.06 USD
Availability: OutOfStock

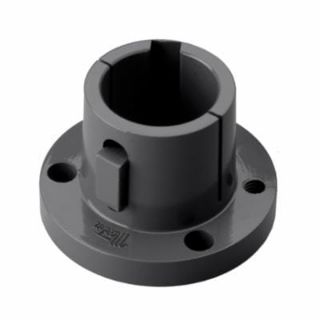

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

R1 3 5/8

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$160.06 / EA

Description

Brand Name

Martin

Type

Standard

Description

MST® bushings are easy to install and remove. They are split through the barrel and have a taper to provide a true clamp on the shaft. They are keyed to both the shaft and the hub to help during "blind" installations.

Martin MST Bushing, Standard, 3-5/8 in Bore Dia, 3-7/8 in Small End/4 in Large End Barrel Dia, 5-3/4 in Hub Dia, 4-5/8 in Bolt Circle, 5-3/8 in Flange Dia, 0.62 in Flange Thickness, 3 Bolt Holes, 3/8-16 x 1-3/4 in (Cap Screw)/5/16-18 x 5/16 in (Set Screw) Screw, For Use With: MST® Sprockets and HR1 Weld-On Hub, 2.88 in Overall Length, 7/8 x 7/16 in Keyway, Ductile Iron

Standards

ANSI B15.1

Features

Size 2/R1 bushing
Tolerances meet or exceed industry standards
Precise machining and processes ensure consistent finish and high quality
Interchangeable with other manufacturersâ€™ split-taper bushings

Specifications

Barrel Diameter:	3-7/8 in Small End/4 in Large End
Bolt Circle Diameter:	4-5/8 in
Bore Diameter:	3-5/8 in
Country of Origin:	US
Flange Diameter:	5-3/8 in
Flange Thickness:	0.62 in
Hub Diameter:	5-3/4 in
Keyway Size:	7/8 x 7/16 in
Material:	Ductile Iron
Number of Bolt Holes:	3
Overall Length:	2.88 in
Screw Size:	3/8-16 x 1-3/4 in (Cap Screw)/5/16-18 x 5/16 in (Set Screw)
Suitable For Use With:	MST® Sprockets and HR1 Weld-On Hub
