R322A MAR

Name: R322A MAR
Brand: Marathon Electric Motors
SKU: R322A MAR
Availability: OutOfStock

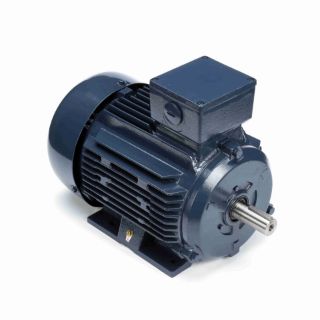

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

R322A

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

100LTFC6526

Features

Meets IE3 European and NEMA Premium® efficiencies MAX GUARD® Class F Insulation, Class B rise @ rated KW Wye Start-Delta Run on 160 Frame and larger 10:1 Variable Torque, Constant Torque speed range as noted Top Mounted/Oversized gasketed terminal box

Specifications

Assembly/Box Mounting:	F3
C Dim (IN):	16.33
CE:	Y
Connection Drawing Number:	005010.01
Country of Origin:	China
CSA:	Y
Current:	8.0/4.0
DE Bearing Size:	6206
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	90.2
Electrical Type:	Squirrel Cage Inverter Rated
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Material:	Cast Iron
Frame Size:	100
Frame Suffix:	L
Frame Type:	100L
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	3
Insulation Class:	F
IP Code:	55
KVA Code:	J
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6205
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS622236-DF100L1-4R
Phases:	3
Power Factor:	79.2
Power Rating (HP):	3
Power Rating (kW):	2.2
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.111
Shaft Extension:	2.36
Shaft Type:	IEC
Speed:	1770
Speed Max:	1770
Starting Type:	Line Or Inverter
Type of Overload Protector:	No
UL:	No
Voltage:	230/460
