R333A MAR

Name: R333A MAR
Brand: Marathon Electric Motors
SKU: R333A MAR
Availability: OutOfStock

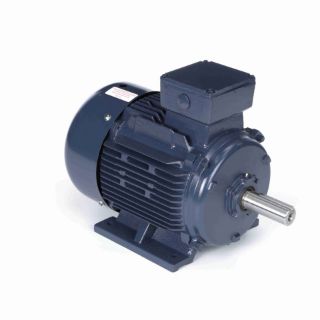

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

R333A

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

160MTFC6511

Features

Meets IE3 European and NEMA Premium® efficiencies MAX GUARD® Class F Insulation, Class B rise @ rated KW Wye Start-Delta Run on 160 Frame and larger 10:1 Variable Torque, Constant Torque speed range as noted Top Mounted/Oversized gasketed terminal box 12 Leads for WYE-DELTA, part winding on low voltage, or across-the-line starting

Specifications

Assembly/Box Mounting:	F3
C Dim (IN):	23.62
CE:	Y
Connection Drawing Number:	004172.03
Country of Origin:	China
CSA:	Y
Current:	35.0/17.5
DE Bearing Size:	6209
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	91
Electrical Type:	Squirrel Cage Inverter Rated
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Material:	Cast Iron
Frame Size:	160
Frame Suffix:	M
Frame Type:	160M
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	15
Insulation Class:	F
IP Code:	55
KVA Code:	G
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6209
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS622239
Phases:	3
Power Factor:	88.5
Power Rating (HP):	15
Power Rating (kW):	11.2
Resistance Main:	.4
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.666
Shaft Extension:	4.33
Shaft Type:	IEC
Speed:	3545
Speed Max:	3545
Starting Type:	Part Wdg Start & Wye Start Delta Run Or Inverter
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
