R418 MAR

Name: R418 MAR
Brand: Marathon Electric Motors
SKU: R418 MAR
Availability: OutOfStock

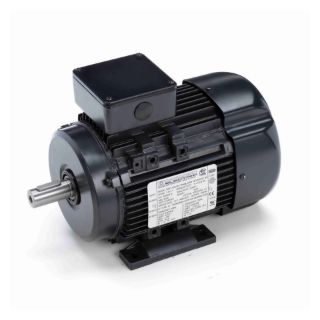

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

90ST34FH5302

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Marathon®

Type

2-Pole Continuous Duty Split Phase

Description

Marathon® Globetrotter® AC Motor, 2-Pole Continuous Duty Split Phase, Compressor Motors, Fan & Blower Motors, Jet Pump (JM/JP) Motors Application, IEC Metric Motors, Inverter Ready Special Features, 2 hp, 575 VAC, 2.1 A, 60 Hz Frequency, 3 ph ph, 3470 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 90S Frame, 1 in Dia x 1.96 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, B3 Footed/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Aluminum, 20:1 Constant Torque Speed, 10:1 Variable Torque Speed, 326 mm L x 180 mm W x 229 mm H Dimensions

Application

Fans, Pumps, Conveyors and Other Equipments

Standards

Features

IEC Metric Motors, Inverter Ready

Specifications

Amperage Rating:	2.1 A
Application Type:	Compressor Motors, Fan & Blower Motors, Jet Pump (JM/JP) Motors
Bearing Type:	Ball
Constant Torque Speed Range:	20:1
Country of Origin:	CN
Dimensions:	326 mm L x 180 mm W x 229 mm H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	90S
Frequency Rating:	60 Hz
Horsepower:	2 hp
Insulation Class:	Class F
Material:	Aluminum
Mounting Type:	B3 Footed/Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1 in Dia x 1.96 in L
Speed:	3470 rpm
Temperature Rating:	40 deg C
Variable Torque Speed Range:	10:1
Voltage Rating:	575 VAC
