RAK 15/16 TKN

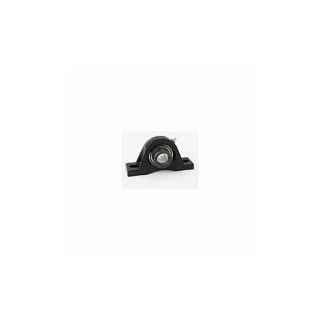

Picture of RAK 15/16 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
RAK 15/16
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$178.76 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken®

Type

Normal Duty

Description

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken®, RAK 15/16, Pillow Block Ball Bearing Unit, Normal Duty, Series: RAK, 15/16 in Bore, 4.126 in Bolt Center-to-Center Length, 1.313 in Base to Bore Centerline, 5-1/2 in Overall Length, 1-3/4 in Overall Width, 2.748 in Overall Height, Two-Bolt Base Mounting, Round Bore, 1.469 in Base Width, Eccentric Locking Device, Shroud Seal, Non-Expansion (Fixed), 3150 lb Dynamic/1760 lb Static Load, 250 deg F, 5440 rpm Maximum, Cast Iron, Uncoated

Application

Agriculture, Food Processing, Fans, Blowers and Conveyors

Features

  • Heavier than our standard block with solid, flat feet for increased strength
  • Compact, one-piece housing can be mounted in any position
  • Pillow blocks self-align at mounting with the spherical outside diameter of the bearing fitting into the corresponding spherical housing seat
  • Pre-lubricated and ready for immediate installation
  • Grease fitting for relubrication
  • All units are supplied with G-KRRB (R-seal) wide-inner-ring ball bearing and locking collar
  • RAK pillow block is equipped with G-KRRB (R-seal) wide-inner-ring ball bearings

Specifications

Base to Bore Centerline:1.313 in
Base Width:1.469 in
Bolt Center-to-Center Length:4.126 in
Bore Diameter:15/16 in
Bore Type:Round
Expansion Type:Non-Expansion (Fixed)
Finish:Uncoated
Load Capacity:3150 lb Dynamic/1760 lb Static
Locking Device:Eccentric
Material:Cast Iron
Maximum Speed:5440 rpm
Mounting Type:Two-Bolt Base
Overall Height:2.748 in
Overall Length:5-1/2 in
Overall Width:1-3/4 in
Seal Type:Shroud
Series:RAK
Temperature Rating:250 deg F

Products Specifications

Brand Name
Timken
Shaft Diameter
15/16 in
