RB225 MAR

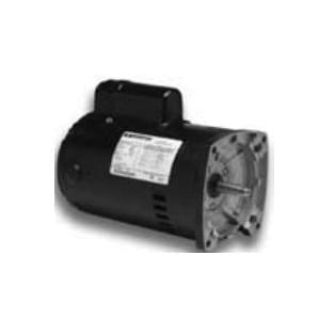

Picture of RB225 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
5KCP49RN9199X
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

2-Pole Continuous Duty

Description

Marathon® AC Motor, 2-Pole Continuous Duty, Application Type: General Purpose AC Motors, Pool & Spa Pump Motors, 1.5/0.25 hp, 230 VAC, 9.6/3.3 A, 60 Hz, 1 ph, 3450/1725 rpm, 2 Speed, Drip-Proof, 56Y Frame, 5/8 in Dia x 1/2 in L Shaft, CW, Service Factor: 1.47, Ball Bearing, Square Flange Mount, 50 deg C, Insulation Class: Class B, 13.58 in L x 6.56 in W

Standards

CSA Certified | UL 1081

Features

  • Threaded shaft motors are 303 stainless steel
  • Permanent split capacitor

Specifications

Amperage Rating:9.6/3.3 A
Application Type:General Purpose AC Motors, Pool & Spa Pump Motors
Bearing Type:Ball
Country of Origin:MX
Dimensions:13.58 in L x 6.56 in W
Enclosure Type:Drip-Proof
Frame:56Y
Frequency Rating:60 Hz
Horsepower:1.5/0.25 hp
Insulation Class:Class B
Mounting Type:Square Flange
Number of Speeds:2
Phase:1 ph
Rotation:CW
Service Factor:1.47
Shaft Size:5/8 in Dia x 1/2 in L
Speed:3450/1725 rpm
Temperature Rating:50 deg C
Voltage Rating:230 VAC

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Frequency Rating
60
Horsepower
1 /12,1/4 HP
Speed Rating
1725
Type
Permenant Split Capacitor
Voltage Rating
230
