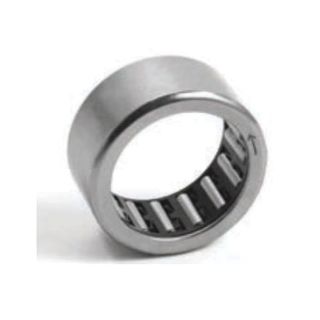

RC081208 BLT

Drawn Cup Needle Roller Clutches are similar to drawn cup needle roller bearings in design, however they allow rotation in only one direction while transmitting torque in the opposite direction. Like the basic drawn cup needle roller bearings, they provide a low cross section that allows it to be used in the smallest amount of space. They are designed to operate directly on a hardened shaft. The design calls for caged construction that includes an interior spring that wedges against the needle rollers and allows free running in one direction but locks the clutch with the shaft when rotated in the opposite direction. The bearings are easily installed with a press fit in the housing.

TRITAN® Needle Roller Clutch, Drawn Cup, Series: RC Series, 1/2 in Bore, 3/4 in OD, 1/2 in Width, CCW Lock Direction, Steel Cage, 17000 rpm Maximum, -5 to 250 deg F
