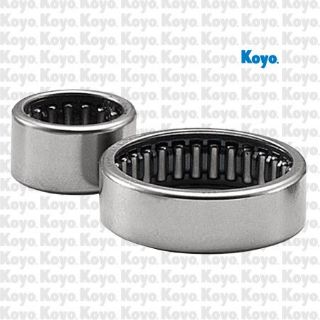

Actual Product May Vary From Image

RCB-162117 KOY

Name: RCB-162117 KOY
Brand: Koyo Bearings
SKU: RCB-162117 KOY
Price: 29.34 USD
Availability: InStock

Koyo RCB-162117 Inch Series Caged Round Bore Drawn Cup Roller Clutch With Integral Spring, 1 in Dia Bore, 1-5/16 in OD, 1-1/16 in W, CW/CCW, 439 in-lb Torque

Manufacturer: Koyo Bearings

Manufacturer part number: RCB-162117

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
5	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$29.34

Qty:

Product Details

Brand Name

Koyo

Type

Caged Round Bore

Description

Drawn Cup Needle Roller Clutches are similar to drawn cup needle roller bearings in design, however, they allow free rotation in only one direction while transmitting torque in the opposite direction. These designs use the same small radial section as drawn cup needle roller bearings and are offered as clutch-only units or as clutch and bearing assemblies.

Koyo Drawn Cup Roller Clutch, Caged Round Bore, Series: RCB Inch Series, 1 in Bore, 1-5/16 in OD, 1-1/16 in Width, CW/CCW Lock Direction, 439 in-lb Torque, 3460 lb Dynamic/3960 lb Static Load, Steel Bearing, Polymer Cage, 8700 rpm Oil Maximum, -30 to 110 deg C

Application

Office Equipment, Paper-Towel Dispensers, Exercise Equipment, Appliances and 2-Speed Gearboxes

Standards

ABEC1 | ASTM A1014

Features

For proper application, separate bearings are suggested to carry radial loads and assure concentricity between shaft and housing
The clutch engages and when housing is rotated relatively to the shaft in the direction of arrow marking as labelled on the cup
Shaft raceway and housing bore diameters that are necessary for proper mounting and operation are listed on the opposite page
Compact, lightweight and operate directly on a hardened shaft
Installation is easily accomplished with a simple press fit
Best used for light duty torque applications that require a one way clutch
RCB are clutch bearings capable for rotational torque and radial load
A polymer spring is standard
A hardened and machined shaft or an "IR" inner ring is required for optimal performance
A press fit into the housing is required

Specifications

Bearing Material:	Steel
Bore Diameter:	1 in
Cage Material:	Polymer
Load Capacity:	3460 lb Dynamic/3960 lb Static
Lock Direction:	CW/CCW
Maximum Speed:	8700 rpm Oil
Outside Diameter:	1-5/16 in
Series:	RCB Inch Series
Temperature Rating:	-30 to 110 deg C
Torque Rating:	439 in-lb
Width:	1-1/16 in
