RCJC1 TKN

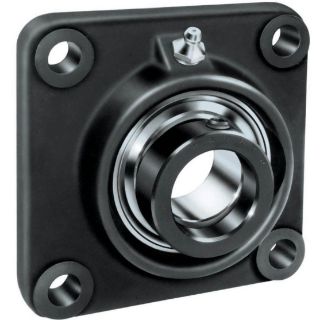

Picture of RCJC1 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
RCJC1
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$205.81 / EA

Description

Brand Name

Fafnir®

Type

Industrial Normal Duty

Description

Timken® ball bearing housed units feature a wide-inner-ring ball bearing for additional shaft support. Designed for mounting on straight shafts with a slip fit, these housed units are available in an extensive array of types and sizes to accommodate many industrial applications.
Timken® Fafnir®, RCJC1, Flange Mount Ball Bearing Unit, Industrial Normal Duty, Series: RCJC, 1 in Bore, 2-3/4 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 3-3/4 in Overall Length/Diameter, 1-27/64 in Overall Depth, 1.444 in Overall Height, Eccentric Locking Device, Steel Bearing, 3490 lb Dynamic/1760 lb Static Load, 5440 rpm Maximum, -30 to 275 deg F, Uncoated

Application

Agriculture, Food Processing, Fans, Blowers and Conveyors

Features

  • These units have the same basic design as the RCJ series, except a concentric-collar is used as the shaft-locking device instead of a self-locking cam collar
  • All RCJC units are equipped with GC-KRRB wide-inner-ring, concentric-collar bearings
  • The spherical outside diameter of the bearings is mounted in corresponding machined housing seats to provide the initial self-alignment
  • The bolt-hole spacing dimensions are interchangeable with the RCJ series and most competitive units
  • The units are factory pre-lubricated
  • All units are supplied with concentric-collars

Specifications

Bearing Material:Steel
Bolt Center-to-Center Length:2-3/4 in
Bore Diameter:1 in
Finish:Uncoated
Flange Mounting Type:4-Bolt
Load Capacity:3490 lb Dynamic/1760 lb Static
Locking Device:Eccentric
Maximum Speed:5440 rpm
Overall Depth:1-27/64 in
Overall Height:1.444 in
Overall Length/Diameter:3-3/4 in
Series:RCJC
Temperature Rating:-30 to 275 deg F

Products Specifications

Brand Name
Timken
Measuring Units
Inch
Shaft Diameter
1 in
